ACCEL-VM200

ACCEL-VM300 (Preliminary)
ACCEL-A2401

  • Enables the management and configuration of multiple compatible video over IP (VoIP) extender through a single WebGUI.
  • WebGUI clearly displays the status of all connected Transmitters and Receivers, including IP addresses, channel selection, etc.
  • Dual LAN ports enable control over VoIP installations that reside on a logically or physically separate network from the standard local network.
  • Supports Optional Trigger Control Keypad for easy, single-button, preset activation.



Specification

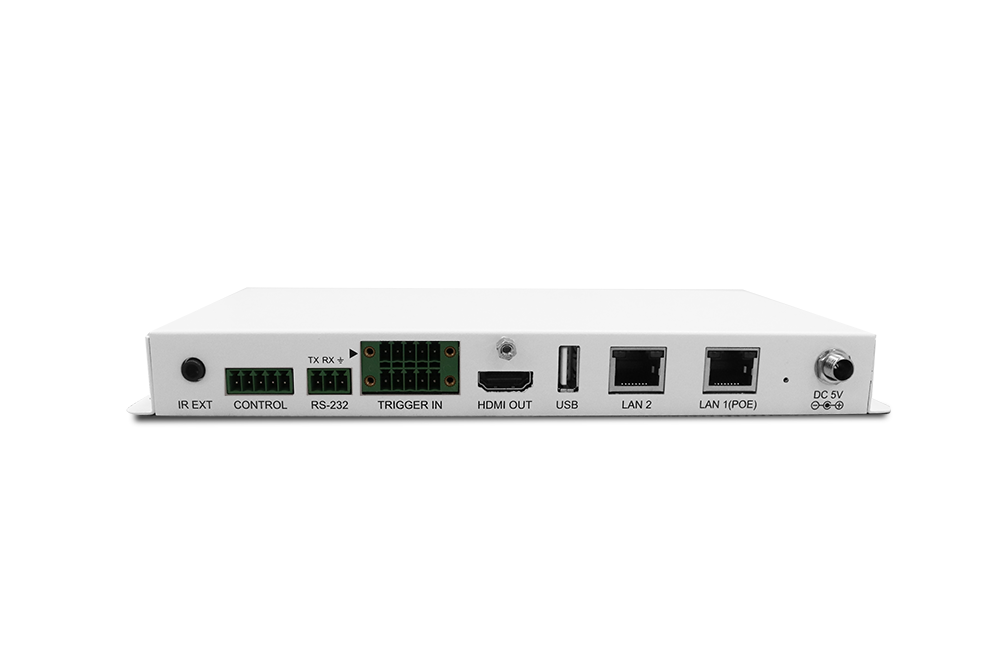

Output Port

1 x HDMI
Control I/O

1 x IR Extender (3.5mm)
1 x RS-232 (3-pin Terminal Block)
8 x Trigger (10-pin Terminal Block)
1 x USB (Type-A)
2 x LAN (RJ-45)
Reserved Port

1 x RS-232 (5-pin Terminal Block)
Maximum Output

1920 x 1080p@60
HDMI
Power Supply

5V/2.6A DC (Locking)
Power Consumption

2.99W
Enclosure Chassis Material

Steel
Enclosure Chassis Color

White
Dimensions

231.5 × 25 ×108 mm (Case Only)
231.5 x 25 x 117 mm (All-Inclusive)
Weight

250g
Package Size

280 x 180 x 71 mm
Certifications

CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013/A12:2014 (V3.1)
FCC: Part 18 Class A

Addtional Information

Application

  • Digital Operating Room Network
  • Video Recording in Operating Room
  • Transmitter or Receiver

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
