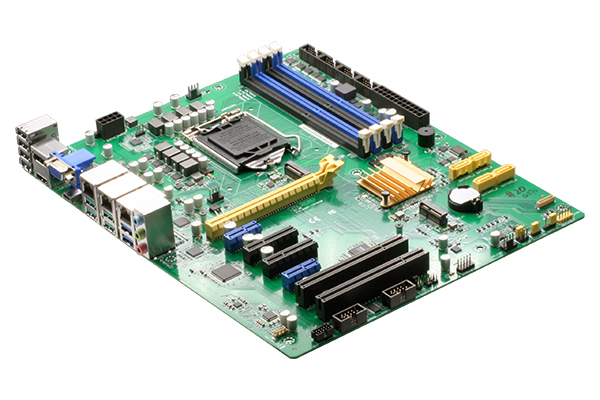

Specification
| Processor | 8th/9th Generation Intel® (Coffee Lake-S) Core™ i9/ i7/ i5 / |
|---|---|
| Form Factor | ATX |
| System Memory | DIMM x 4, DDR4 (2666/2400/2133 MHz, max. 64GB) |
| Chipset | Intel® Q370 Express Chipset |
| H/W Status Monitoring | Temperature Monitor on CPU/Chassis, Voltage Monitor on |
| Expansion Slots | PCIe 3.0[x16] Slot x 1, PCIe 3.0[x4] Slot (open edge) x 2, |
| Operating System | Windows® 10 64-bit, Linux Ubuntu 64-bit (18.04.1/ |
| BIOS | 256M bit Flash ROM x 1, AMI BIOS |
| Wake on LAN | Yes (WOL / PXE) |
| Watchdog Timer | 1~255 step by software program |
| TPM | Nuvoton NPCT750ABBYX TPM2.0 onboard (optional) |
| Power State | S3, S4, S5 |
| USB | Rear: USB 3.2 Gen 2 ports (10 Gbps) x 4, USB 3.2 Gen 1 |
| Serial Port | 5 x RS-232 headers |
| Ethernet | Intel® PHY i219LM Giga LAN x 1 (supports Intel® AMT |
| Storage | SATA III (6.0Gb/s) ports x 4, support RAID 0/1/5/10 |
| Audio | Realtek® ALC887 6-Channel High Definition Audio CODEC |
| Graphics Chipset | Intel® Graphics Media Accelerator |
| Multi Display | HDMI+VGA+DP (BOM option: USB 3.2 Gen 2 Gen2-10Gbps |
| VGA | Up to 1920 x 1200 @60Hz (via IT6516B) |
| DIO | 8-bit Digital I/O interface (In/Out programmable) |
| Fan | CPU Fan connector(s) (4-pin) x 1, Chassis Fan |
| Battery | Lithium battery |
| Power Requirement | 24-pin ATX connector x 1, 8-pin (2×4) ATX 12V Power |
| Operating Humidity | 0% ~ 90% RH, non-condensing |
| Operating Temperature | 32°F ~140°F (0°C ~ 60°C) |
| Storage Temperature | -40 °C ~ 85 °C |
| Gross weight | 1.76lb (0.8 kg) |
| MTBF (Hours) | 281,410 |
