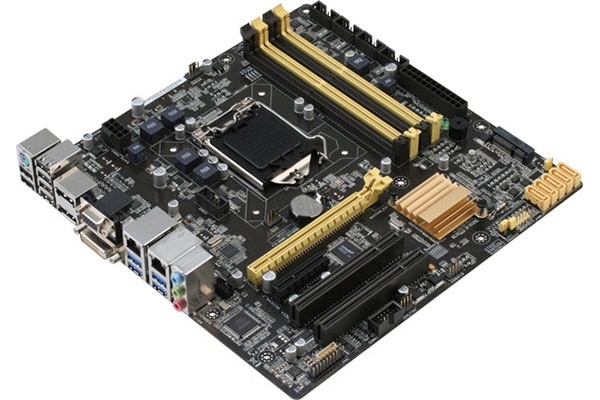

  • 4th Generation Intel® Core™ i7/i5/i3 22nm LGA 1150 Socket Processor

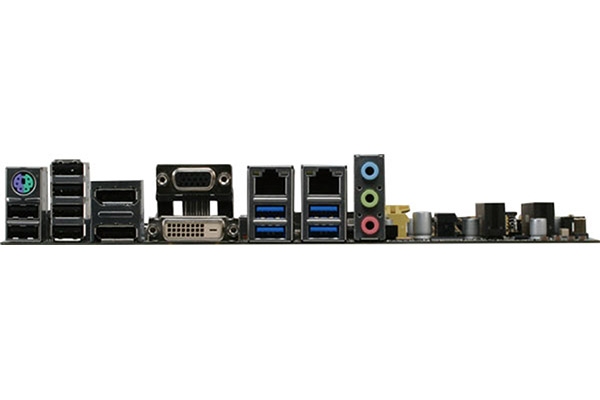

  • Three/Dual Independent Display: VGA, DVI-D, DP x 2
  • Dual Gigabit Ethernet, LAN1 Supports iAMT 9.0
  • SATA 6.0 Gb/s x 5, USB 3.2 Gen 1 x 4, USB 2.0 x 8
  • Rich Expansion Slot: PCI-E [x16] x 1, PCI-E [x4] x 1, PCI x 2, Mini-Card (or Optional mSATA) x 1
  • TPM Optional (Via Pin Header)

Specification

Processor

4th Generation Intel® Core™ i7/i5/i3/Pentium®/ Celeron®
22nm LGA 1150 socket Processor

Form Factor

Micro-ATX

System Memory

240-pin DIMM x 4, max. 32GB, DDR3 1600/1333 MHz,
non-ECC, un-buffered memory, dual-channel memory
architecture

Chipset

Intel® Q87 Express Chipset

H/W Status Monitoring

Temperature Monitor on CPU/System, Voltage Monitor on
Vcore/5V/12V, Fan Monitor on CPU/Chassis

Expansion Interface

PCI-E[x16] x 1, Mini-PCIe x 1

BIOS

AMI BIOS – 128 MB ROM

Wake on LAN

Yes (WOL / PXE)

Watchdog Timer

System Reset: 1~255 steps programmable

USB

USB 2.0 connector x 1 supports additional 2 USB
ports

Serial Port

RS-232 header x 5, RS-232/422/485 DB-9
connector x 1 (COM1, supports
5/12V on RI pin)

Ethernet

Intel® PHY I217LM Gb LAN (supports iAMT 9.0) x 1, Intel®
I210AT Gb LAN x 1, RJ-45 x 2

Storage

SATA3 (6.0Gb/s) port x 5, supports RAID 0/1/5/10;
Half size Mini-Card (PCIe + USB,or mSATA
optional) x 1

Audio

Audio Jack x 3: Line-in, Mic-in, Line-out

Digital I/O

8-bit Digital I/O interface x 1 (In/Out
programmable)

Power Consumption

Intel® Core™ i7-4700EQ 3.40 GHz, 4.23A@ +12V/Full loading 50.5W

Power Requirement

24-pin ATX connector x 1, 8-pin ATX 12V Power connector
x 1

Power State

Yes (WOL / PXE)
Power State S3, S4, S5

Operating Humidity

0% ~ 90% R/H, non-condensing

Operating Temperature

32 °F ~ 140 °F (0 °C ~ 60 °C)

Storage Temperature

-40°F ~ 185°F (-40°C ~ 85°C)

Gross weight

1.76 lb (0.8 kg)

OS Support

Windows® 7 32/64-bit, Windows® 8.1 32/64-bit,
Windows® 10 32/64-bit, Linux Fedora
