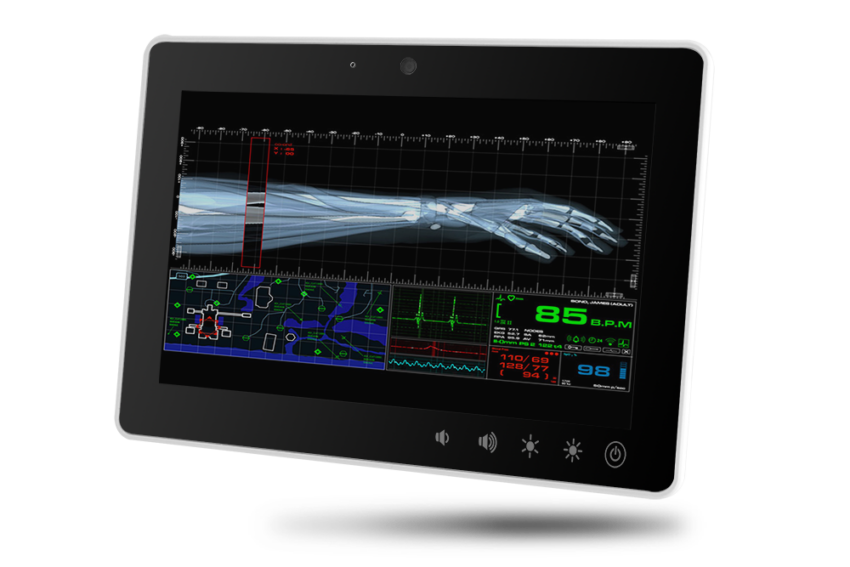

  • Slim Medical Panel PC
  • Intel® Celeron N6210 / Atom x6211E Dual Core Processor
  • 10.1” 1280×800 LCD
  • Supports DDR4 SODIMM up to 16GB (optional In-Band ECC support)
  • Capacitive Multi-Touch Screen
  • Proprietary PCI Express[x1] Interface
  • Easy Cleaning Flat Screen
  • 4 Programmable Smart Function Keys
  • High Speed USB 3.1 Port
  • 2.0M Pixels Camera with Mic (optional)
  • HDMI 2.0b Port for 2nd Display
  • RFID Reader (optional)
  • +12V DC input

Specification

Processor

Intel® Celeron N6210 2.6GHz / Atom x6211E 3.0GHz Dual Core Processor

System Memory

Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E)

Expansion Interface

M.2 2230(E-key) x 1, Proprietary PCIe[x1] x 1

Storage Disk Drive

M.2 2242 SATA SSD x1

Security

RFID Reader (optional)

Wireless Communication

802.11ac/ax(optional) + Bluetooth 5.1/5.3(optional)

Speaker

2Wx2

Function Keys

LCD Brightness Up/Down, Touch Screen On/Off

OS Support

Windows 10, Windows 11 , Linux

Size

10.1" LCD

Max. Resolution

1280 x 800

Luminance(cd/m2)(TYP)

400 nits

View Angle

178˚(H)/178˚(V)

Contrast Ratio

800:1

Back Light Life Time

30,000 Hours

Touchscreen

Capacitive Multi-Touch

USB

USB 3.1 Gen 1 x4

Serial Port

RS-232 x 1

Ethernet

Gigabit LAN x2 (isolated x1 + non-isolated x1)

Power Consumption

TBD

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Mounting

VESA 75/100 mm

Degree of protection

IP65 in the front, IPX1

Net Weight

1.2kg (2.6lb)

Gross Weight

3.7kg (8.2lb)

Package Dimension (W x D x H)

402 x 190 x 335 mm

Certifications

CE: EN 60601-1-2:2015(V4.0), cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1), EN 60601-1:2006/A1:2013(V3.1), FCC: Part 18 Class B, UL: ANSI/AAMI ES60601-1:2012 (V3.1)

Download Resource

ONYX-1033
Data Sheet Driver Bios Certification
Download Download Download

Product Video

Coming soon…

Addtional Information

Application

  • Telemedicine
  • EHR/EMR
  • Nursing Station
  • Patient Ward
  • Long Term Care Facility

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
