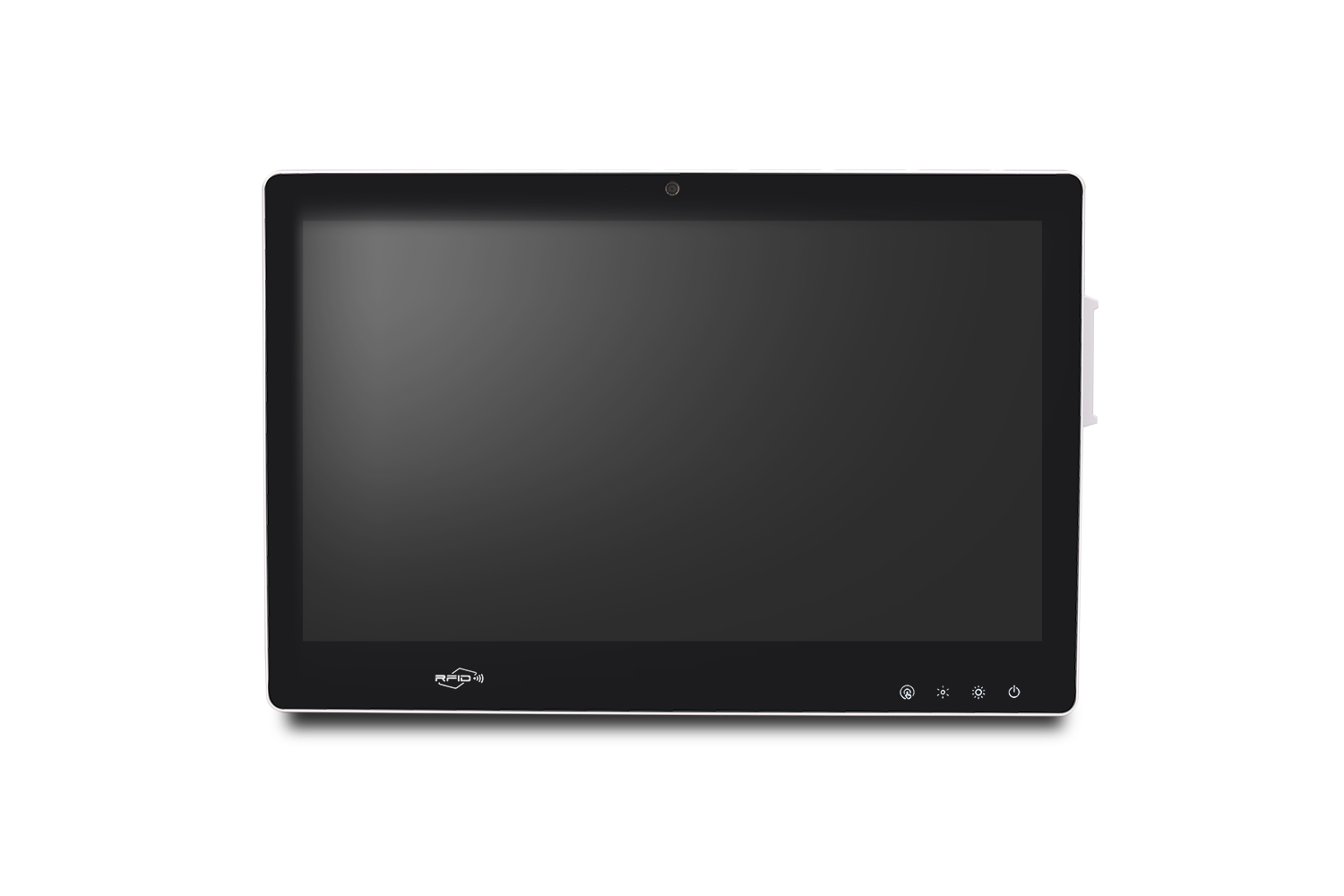

  • Intel® Celeron N6210/Atom x6211E /Atom x6425E Processor

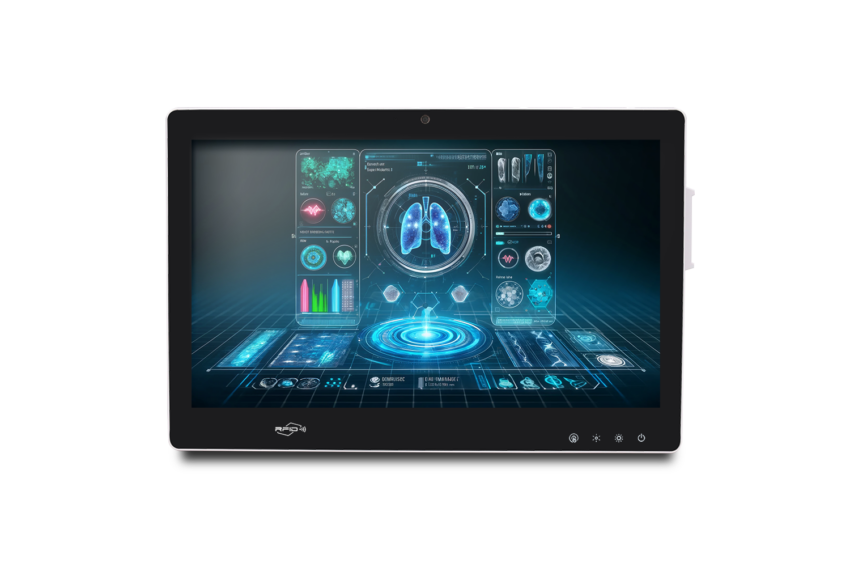

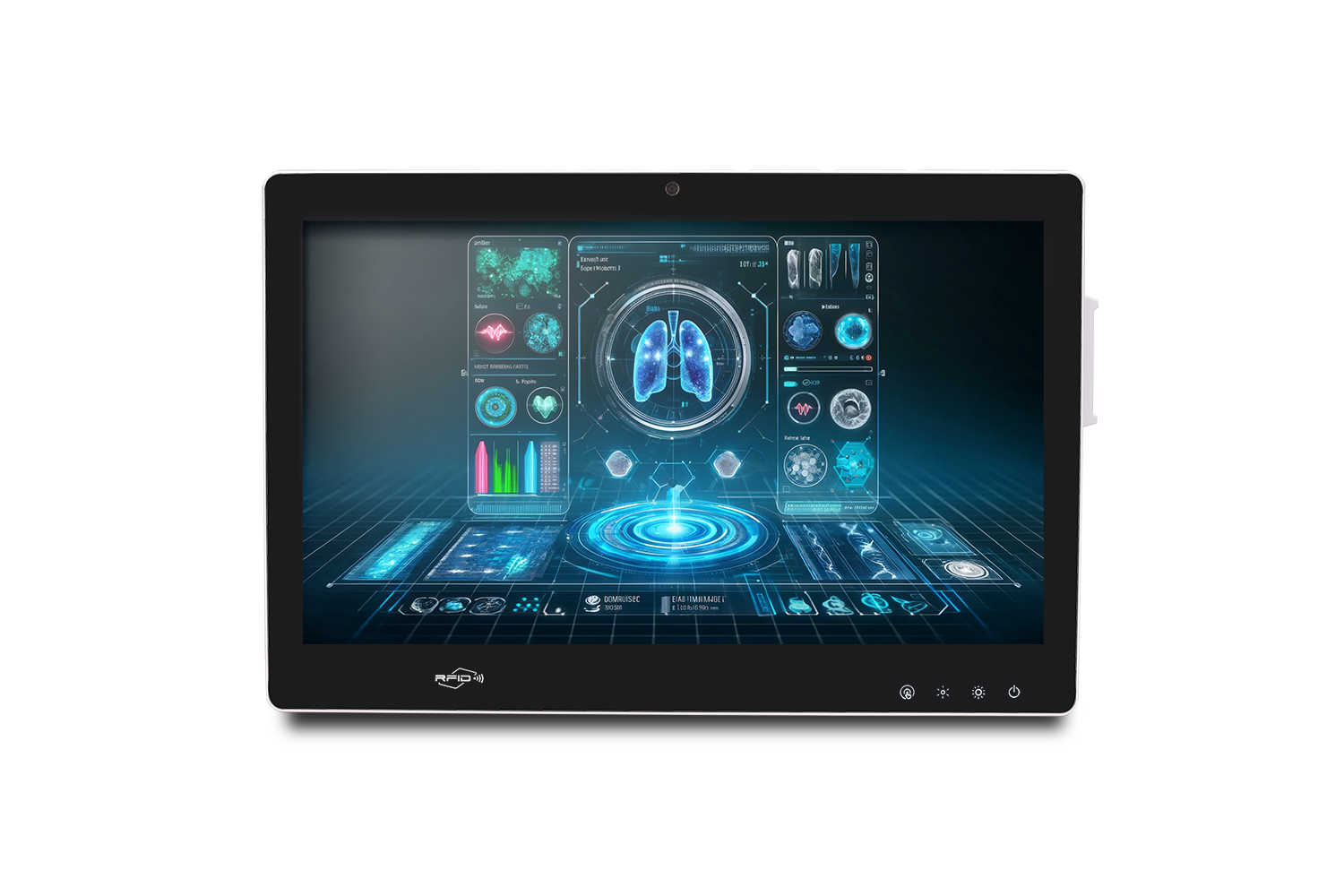

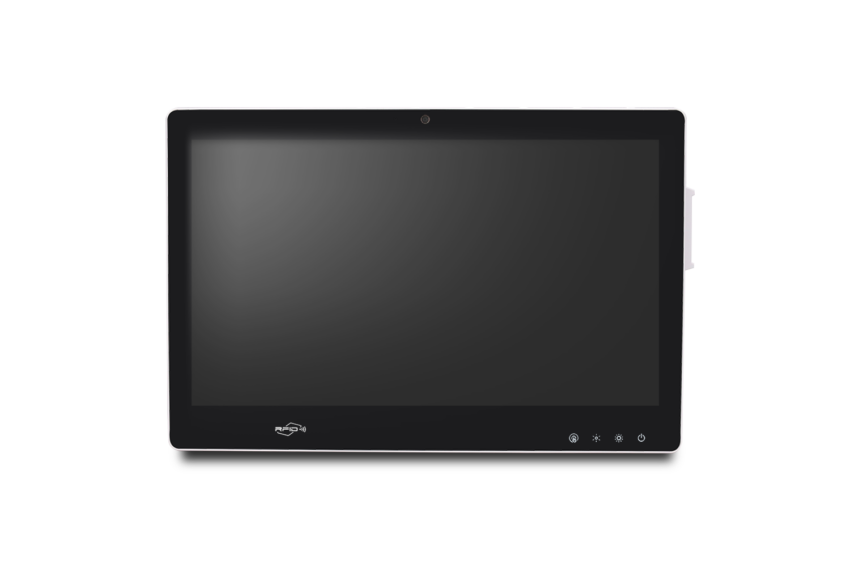

  • 18.5” High Brightness 350nit Full HD LCD
  • Supports DDR4 SODIMM up to 16GB (optional In-Band ECC support)
  • Proprietary PCI Express[x1] Interface
  • Easy Cleaning Flat Screen
  • 4 Programmable Smart Function Keys
  • High Speed USB 3.1 Port

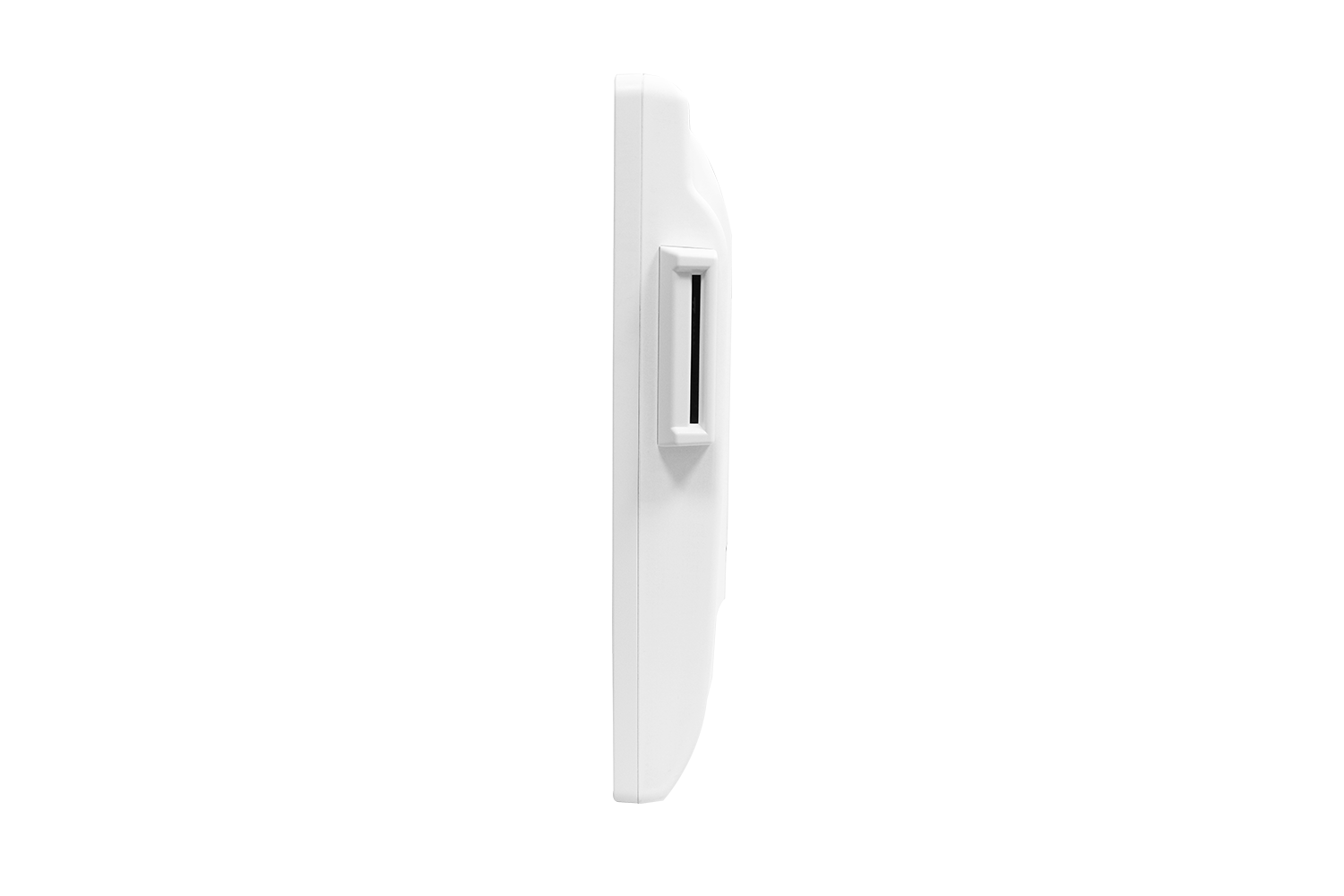

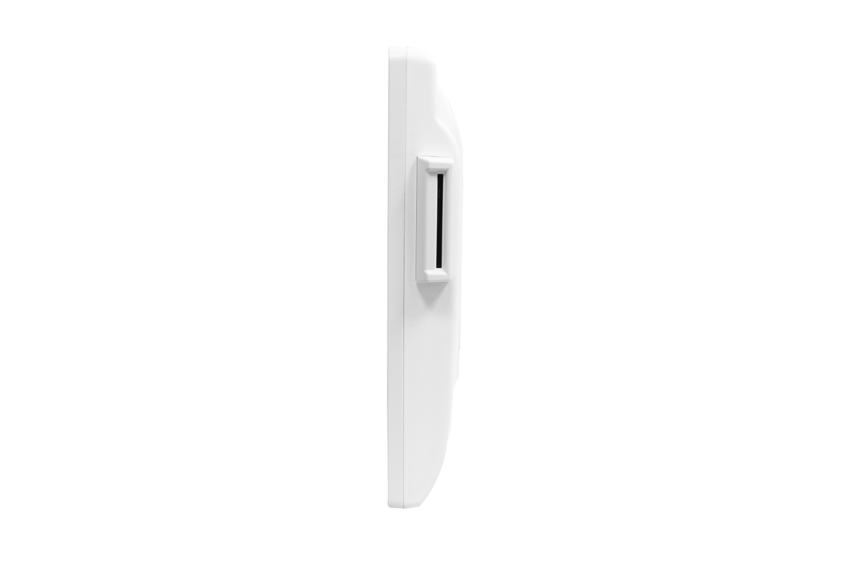

  • RFID Reader (optional)
  • +12V DC input

Specification

Processor

Intel® Atom x6211E Dual Core Processor, Intel® Atom x6425E Quad Core Processor, Intel® Celeron N6210 Dual Core Processor

System Memory

Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E)

Expansion Interface

M.2 2230(E-key) x 1, Proprietary PCIe[x1] x 1

Storage Disk Drive

2.5" SATA SSD x 1, M.2 2242 SATA SSD x1

Security

RFID Reader (optional)

Wireless Communication

802.11ac/ax(optional) + Bluetooth 5.1/5.3(optional)

Speaker

Built in Speaker

Function Keys

LCD Brightness Up/Down, Touch Screen On/Off

OS Support

Windows 10, Windows 11 , Linux

Size

18.5" LCD

Max. Resolution

1366x 768(WXGA), 1920x 1080(FHD)

Luminance(cd/m2)(TYP)

250nits, 350nits

View Angle

178˚(H)/178˚(V)

Contrast Ratio

1000:1

Back Light Life Time

50,000 Hours, 30,000 Hours

Touchscreen

Capacitive Multi-Touch

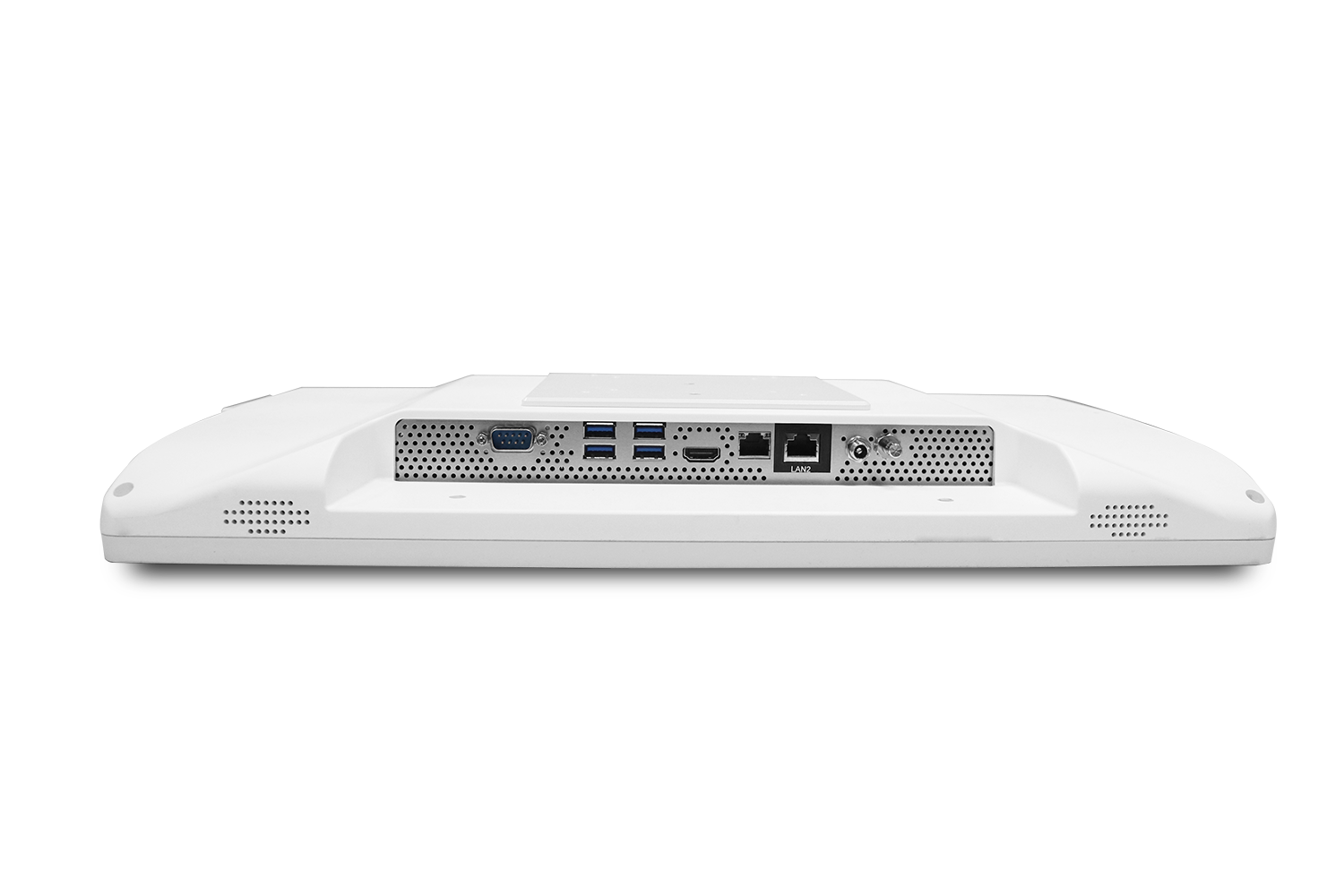

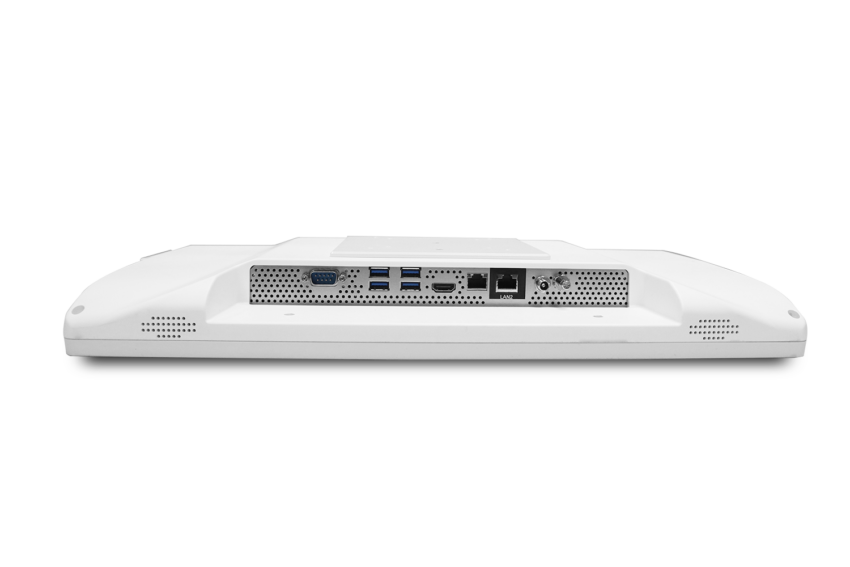

USB

USB 3.1 Gen 2 x 4

Serial Port

RS-232 x 1

Ethernet

Gigabit LAN x 2

Power Consumption

TBD

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

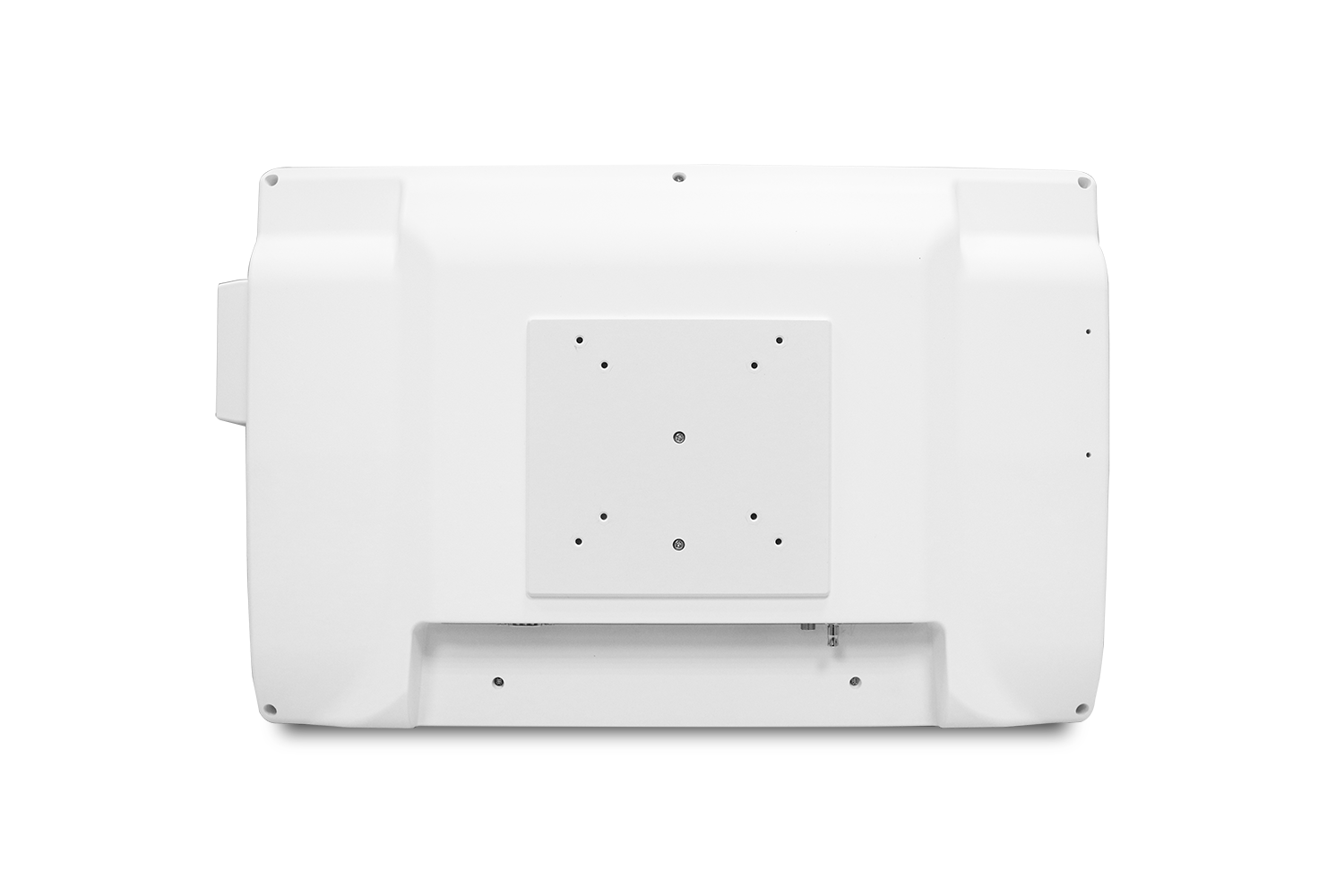

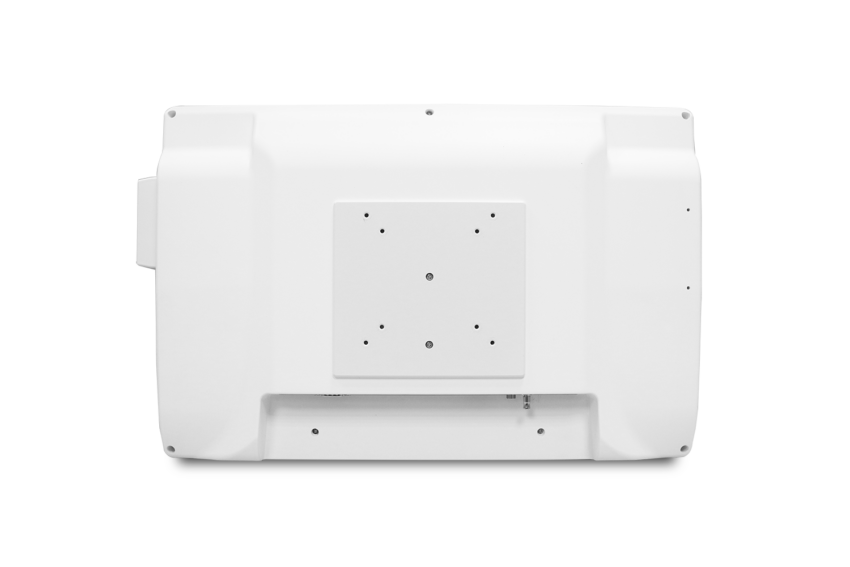

Mounting

VESA 75/100 mm

Net Weight

TBD

Gross Weight

TBD

Package Dimension (W x D x H)

TBD

Certifications

CE: EN 60601-1-2 2015/A1:2021(ed 4.1), cUL: CAN/CSA-C22.2 No. 60601-1:14/A2:22 (ed 3.2), EN 60601-1:2006/A1:2013/A12:2014/A2:2021 (ed 3.2), UL: ANSI AAMI ES 60601-1:2005/A1:2012/A2:2021(ed3.2), FCC: Part 18 Class B

Download Resource

ONYX-1833
Data Sheet Driver Bios Certification
Download

Product Video

Coming soon…

Addtional Information

Application

  • Telemedicine
  • EHR/EMR
  • Nursing Station
  • Patient Ward
  • Long Term Care Facility

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
